Ball Transfer Tables Overview
Ball transfer tables are often used when there is a requirement for products to be manually rotated or positioned, such as an assembly work station or other similar operation that requires quick, easy handling of the product.
Ball transfer tables are also used within gravity conveyor systems to transfer cartons or totes from one line to another. They are widely used on workstation applications to aid assembly, inspection, or testing. Ball transfers simply make it easy to move or rotate light or heavy unit loads with a flat bottom.
Please contact our helpful sales team with your requirements to receive a free quotation.
| Dimensions: | To suit customer requirements |
| Ball Configuration: | Square or Diamond |
| Ball Pitch: | 150mm, 100mm, 75mm, 52mm |
| Ball Diameter: | 22mm |
| Weight Capacity: | 40kg per ball |
| Frame Material: | Powder Coated Fully Welded Mild Steel |
| Accessories & Features: |
|
3D Renders can be provided during design stages if required
Ball Pitch

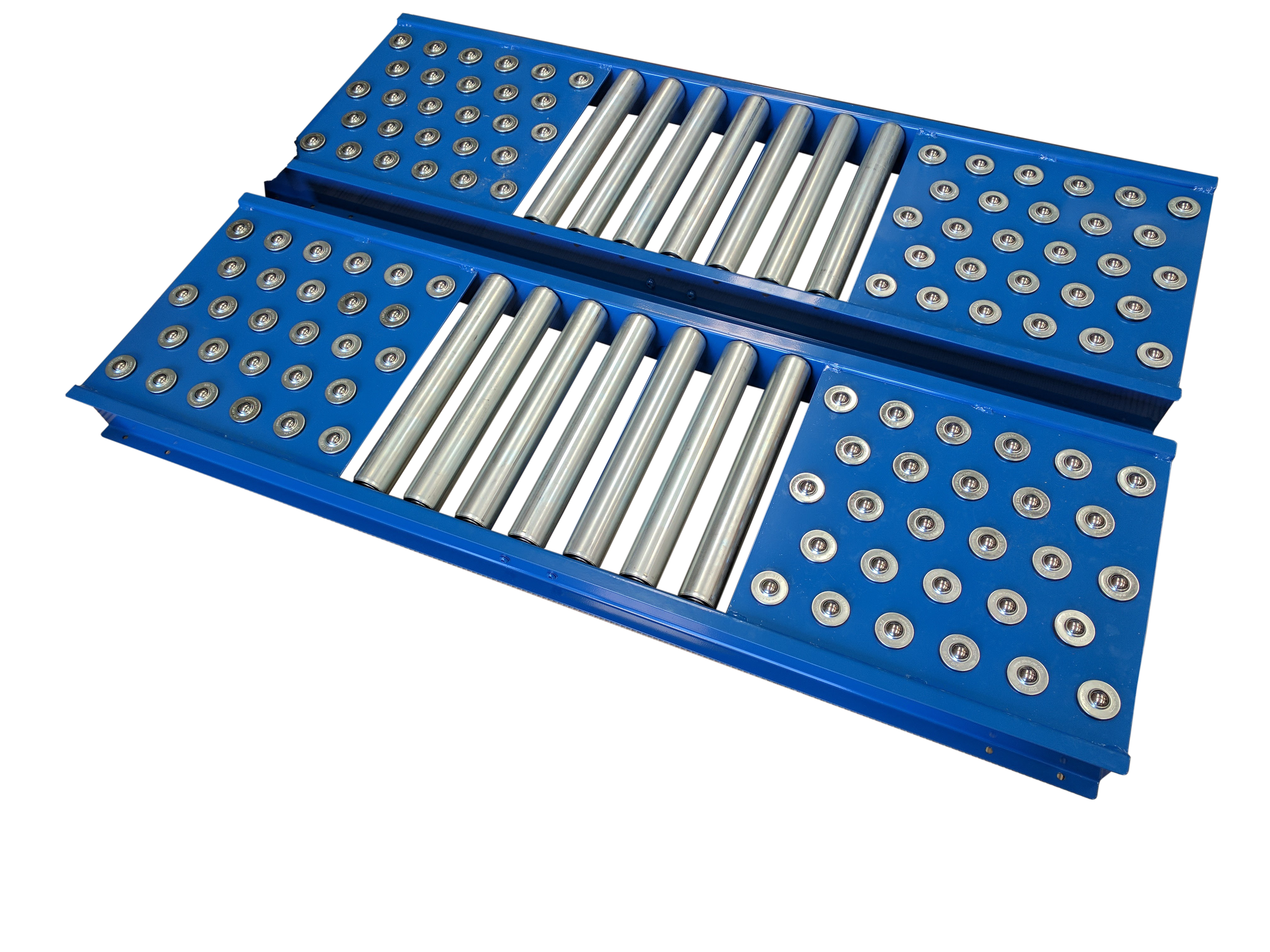

A ball transfer table is a robust table in which a number of ball units are mounted. The pattern in which they are mounted can be square, or diamond.
The ball pitch is the distance between the centre of each ball and the next. For example the a ball pitch of 150mm would mean the balls are spaced 150mm apart.
